Home > Dia25.4mm EFL-70mm N-BK7 Plano Concave Lens 1100-1650nm AR Coating

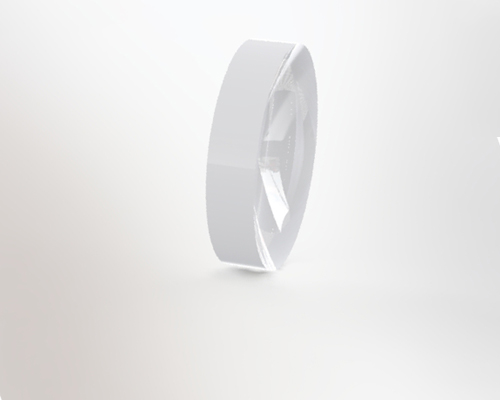

Dia25.4mm EFL-70mm N-BK7 Plano Concave Lens 1100-1650nm AR Coating

Code: 1103-020

$20.00

Qty 2-5
$18.00
Qty 6
$16.20
Volume pricing
Request a Quote
Dwg Drawing-1103-020.dwg PDF Drawing-1103-020.pdf

Specifications:

Type Plano-concave Lens Material N-BK7
Diameters(mm) 25.4(+0.0/-0.1) Design Wavelength(nm) 587.6
Effective Focal Length EFL(mm) -70.00±1% Back Focal Length BFL(mm) -71.78
Coating 1100-1650nm AR Surface Quality(S/D) 40/20
Irregularity@632.8nm λ/4 Centration Error(arc min) ≤2
Center Thickness 2.7±0.1
 Edge Thickness 5.0±0.1
Curvature Radius R1 -36.18 Clear Aperture 90%
Protective Chamfer 0.2mmx45°
Dia25.4mm EFL-70mm N-BK7 Plano Concave Lens 1100-1650nm AR Coating, Code: 1103-020
Plano concave lens is a simple lens with one spherical face and one flat face, it has a negative focal length, allowing the part to increase the divergence of convergent light. Plano concave lenses can be used to balance out the spherical aberrations caused by other lenses. Concave lenses have a broad range of applications including, focusing and control of laser beams, imaging, and other optical instruments.
Hangzhou Shalom EO stocks a series of N-BK7 plano-concave lenses with various diameters, focal lengths, and coatings, and the custom lens with other specifications are also available upon request.
N-BK7
25.4
2.7
5.0
-70mm
λ/4
1100-1650nm AR Coating
$20.0
1 Week
