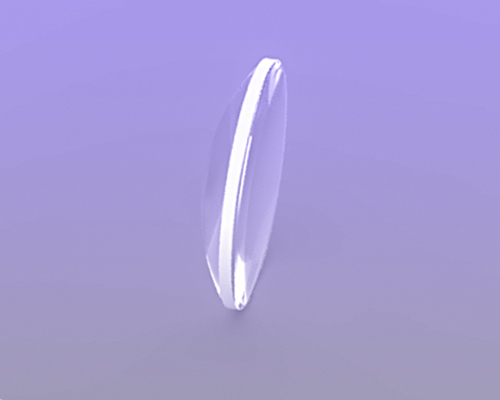

Dia6.0mm EFL30mm UV Fused Silica Plano Convex Lens Uncoated

Code: 1102-106

$17.50

Qty 2-5
$15.75

Qty 6
$14.18

Specifications:

Type	Plano-convex Lens	Material	UV Fused Silica
Diameters(mm)	6.0(+0.0/-0.1)	Design Wavelength(nm)	587.6
Effective Focal Length EFL(mm)	30.00±1%	Back Focal Length BFL(mm)	28.77
Coating	Uncoated	Surface Quality(S/D)	40/20
Irregularity@632.8nm	λ/4	Centration Error(arc min)	≤3
Center Thickness(mm)	1.8±0.1	Edge Thickness(mm)	1.5±0.1
Curvature Radius R1(mm)	13.75	Clear Aperture	90%
Protective Chamfer	0.2mmx45°

Dia6.0mm EFL30mm UV Fused Silica Plano Convex Lens Uncoated, Code: 1102-106

Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light in imaging applications. Fused Silica is often used in applications from Ultraviolet (UV) through the Near-Infrared (NIR). Its low index of refraction, low coefficient of thermal expansion, and low inclusion content make it ideal for laser applications and harsh environmental conditions.

Hangzhou Shalom EO offers stocked and custom UV Fused Silica Plano Convex Lenses.

UV Fused Silica

6.0mm

1.8mm

1.5mm

30mm

λ/4

Uncoated

$17.5

1 Week
