12.3mm f/1.0 Athermalized Lenses for LWIR Thermal Imaging Camera

Code: 301-006

联系我们

Optical Property

Focal Length	12.3mm	F/#	1.0
Operating Wavelength Range	8μm to 12μm	Coating on Front Surface Exposing to Air	DLC
Calculated Average Transmission	>84%	Operating Temperature Range	-40℃ to +60℃
Focus Range	0.2m to infinite	Distortion (Diagonal FOV)	<14%

Mechanical Property

Focusing Mechanism	fixed	Weight	<30g

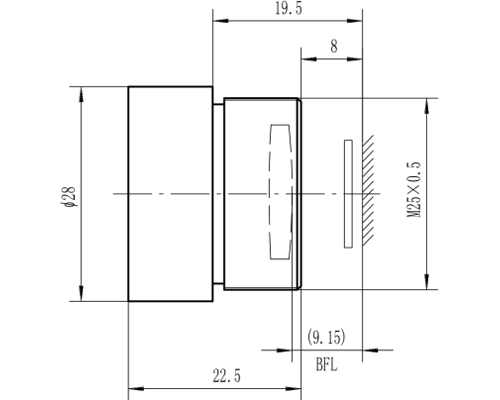

Materials of Lens Housing	Anodized aluminium	Max. Dimensions (Diameter x Length)	ɸ28x22.5
Installation Way	Screw thread connection	Back Working Distance (B.W.D)	8mm
Connector	M25x0.5-6g	Sealing Grade	IP67

FOV(H X V)	160x120	320x240	384x288	640x480	1024x768
12μm	8.3°x6.2°	16.6°x12.5°	19.8°x14.9°	32.4°x24.6°
17μm	11.8°x8.8°	23.3°x17.6°	28.5°x21.4°	48.3°x35.8°
25μm	17.2°x13°	33.7°x25.6°	42.3°x31.5°

12.3mm

L12.3F1.0

1.0

Athermalized

Enquire

5-6 weeks
