15mm f/1.0 Athermalized Lenses for LWIR Thermal Imaging Camera

Code: 301-011

联系我们

Optical Property

Focal Length	15mm	F/#	1.0
Operating Wavelength Range	8μm to 12μm	Coating on Front Surface Exposing to Air	AR
Calculated Average Transmission	>84%	Operating Temperature Range	-40℃ to +60℃
Focus Range	0.2m to infinite	Distortion (Diagonal FOV)	<6.5%

Mechanical Property

Focusing Mechanism	fixed	Weight	<30g

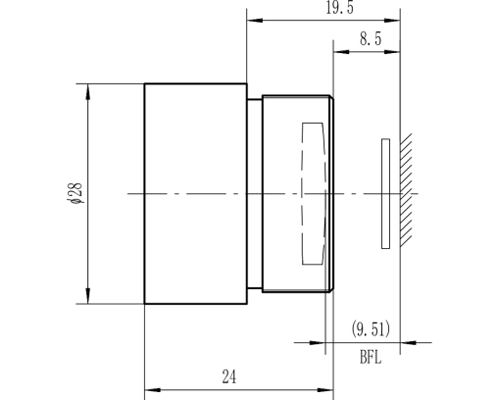

Materials of Lens Housing	Anodized aluminium	Max. Dimensions (Diameter x Length)	ɸ28x24
Installation Way	Screw thread connection	Back Working Distance (B.W.D)	8.5mm
Connector	M25x0.5-6g	Sealing Grade	IP67

FOV(H X V)	160x120	320x240	384x288	640x480	1024x768
12μm	7.3°x5.5°	14.6°x11°	17.5°x13.1°	28.7°x21.7°
17μm	10.4°x7.8°	20.6°x15.5°	24.1°x18.1°	40.1°x30.0°
25μm	15.2°x11.4°	29.9°x22.6°	35.4°x26.6°

15mm

L15F1.0

1.0

Athermalized

Enquire

5-6 weeks
