17mm f/1.0 Athermalized Lenses for LWIR Thermal Imaging Camera

Code: 301-012

联系我们

Optical Property

Focal Length	17mm	F/#	1.0
Operating Wavelength Range	8μm to 12μm	Coating on Front Surface Exposing to Air	AR
Calculated Average Transmission	>84%	Operating Temperature Range	-40℃ to +60℃
Focus Range	0.5m to infinite	Distortion (Diagonal FOV)	<2.5%

Mechanical Property

Focusing Mechanism	fixed	Weight	<30g

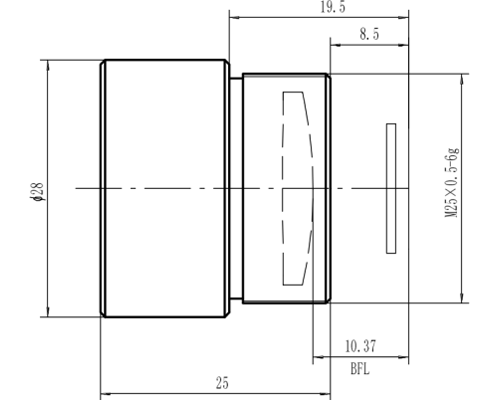

Materials of Lens Housing	Anodized aluminium	Max. Dimensions (Diameter x Length)	ɸ28x25
Installation Way	Screw thread connection	Back Working Distance (B.W.D)	8.5mm
Connector	M25x0.5-6g	Sealing Grade	IP67

FOV(H X V)	160x120	320x240	384x288	640x480	1024x768
12μm	6.5°x4.9°	12.9°x9.7°	15.4°x11.6°	25.5°x19.2°
17μm	9.1°x6.9°	18.2°x13.7°	21.6°x16.3°	35.0°x26.8°
25μm	13.4°x10.1°	26.5°x20°	31.2°x23.8°

17mm

L17F1.0

1.0

Athermalized

Enquire

5-6 weeks
