32mm f/1.0 Athermalized Lenses for LWIR Thermal Imaging Camera

Code: 301-020

联系我们

Optical Property

Focal Length	32mm	F/#	1.0
Operating Wavelength Range	8μm to 12μm	Coating on Front Surface Exposing to Air	AR
Calculated Average Transmission	>88%	Operating Temperature Range	-40℃ to +60℃
Focus Range	3m to infinite	Distortion (Diagonal FOV)	<7%

Mechanical Property

Focusing Mechanism	fixed	Weight	/

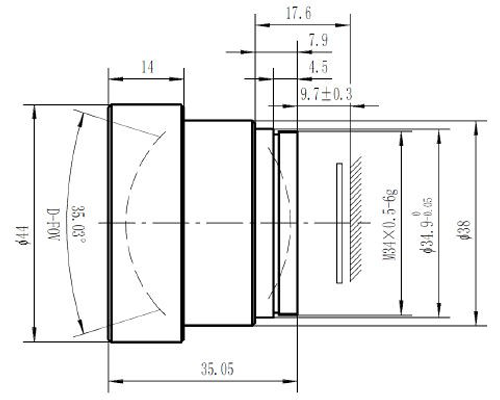

Materials of Lens Housing	Anodized aluminium	Max. Dimensions (Diameter x Length)	Φ44x35.05
Installation Way	Screw thread connection	Back Working Distance (B.W.D)	9.7mm
Connector	M34x0.5-6g	Sealing Grade	IP67

FOV(H X V)	160x120	320x240	384x288	640x480	1024x768
12μm	3.4°x2.6°	6.9°x5.2°	8.2°x6.2°	13.7°x10.3°	21.7°x16.4°
17μm	4.9°x3.7°	9.7°x7.3°	11.6°x8.7°	19.0°x14.4°	29.2°x22.5°
25μm	7.2x5.4°	14.3°x10.7°	17.1°x12.8°	28.1°x21.2°

32mm

L32F1.0

1.0

Athermalized

Enquire

5-6 weeks
