60mm f/1.25 Athermalized Lenses for LWIR Thermal Imaging Camera

Code: 301-029

联系我们

Optical Property

Focal Length	60mm	F/#	1.25
Operating Wavelength Range	8μm to 12μm	Coating on Front Surface Exposing to Air	AR
Calculated Average Transmission	>88%	Operating Temperature Range	-40℃ to +60℃
Focus Range	5m to infinite	Distortion (Diagonal FOV)	<5.6%

Mechanical Property

Focusing Mechanism	fixed	Weight	/

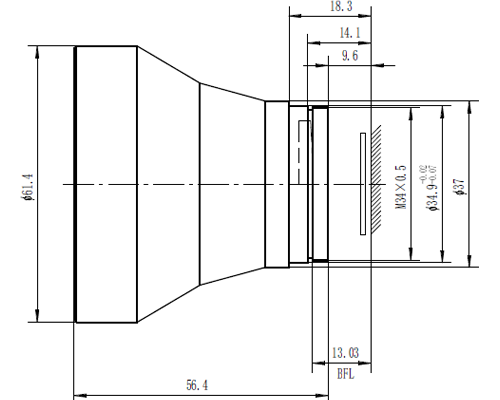

Materials of Lens Housing	Anodized aluminium	Max. Dimensions (Diameter x Length)	Φ61.4x56.4
Installation Way	Screw thread connection	Back Working Distance (B.W.D)	9.6mm
Connector	M34x0.5-6g	Sealing Grade	IP67

FOV(H X V)	160x120	320x240	384x288	640x480	1024x768
12μm	1.8°x1.4°	3.7°x2.7°	4.4°x3.3°	7.3°x5.5°	11.7°x8.8°
17μm	2.6°x1.9°	5.2°x3.9°	6.2°x4.6°	10.3°x7.7°	16.5°x12.4°
25μm	3.8x2.9°	7.6°x5.7°	9.1°x6.9°	15.2°x11.4°

60mm

L60F1.25

1.25

Athermalized

Enquire

5-6 weeks
