100mm f/1.2 Manual Focus Lenses for LWIR Thermal Imaging

Code: 303-038

联系我们

Optical Parameters:

Focal Length 100mm F Number(#) 1.2
FOV(HxV) 6.2°x4.6° Detector 640x480-17μm
Wavelength Range 8~12 micro Average Transmittance >88%
Operation Temperature Range -40℃~60℃ Coating DLC
Minimum Working Distance 8m Distortion Maximum D-FOV Distortion:<1%

Mechanical Parameters:

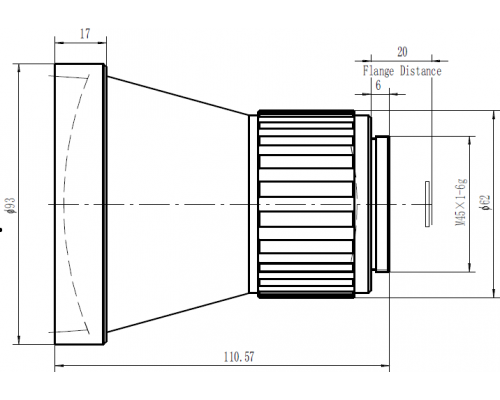

Dimensions Length 110.57 max, φ93 Flange Focal Distance 20mm
Mount M45x1-6g Housing Material Aluminum, Black anodized
Sealing IP54 Operation Temperature -40°~ +60°
Storage Temperature -50°~ +80° Focus Mechanism Manual
Weight ~390g

1.20°MTF(@29lp/mm)

2.20°Field curvature and distortion

3.Vignetting

4.Relative Illumination



100mm
L100F1.2-man
1.2
Manual
Enquire
5-6 weeks
