75mm f/1.0 Motorized Lenses (without Flange) for LWIR Thermal Imaging

Code: 303-053

联系我们

Optical Parameters:

Focal Length	75mm	F Number(#)	1.0
Wavelength Range	8~12 micro	HFOVxVFOV	8.3°x6.23°
Focus Range	5m~Infinity	Coating	DLC and AR
Coating	DLC or AR	Working Temperature	-40℃ ~ +60℃
Resolution	640x480-17μm

Mechanical Specifications:

Sealing	IP54	Focus Mechanism	Motorized
Back Flange Distance	20.6mm	Drive Voltage	6V

It is a motorized focusing lens module for LWIR thermal imaging, with a 75mm focal length and an f-number of 1.0. Compared to our 303-033, the lenses do not contain flange.

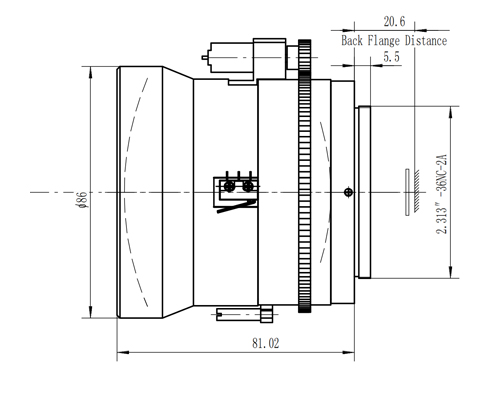

Drawing:
LWIR thermal imaging lenses drawing

75mm

L75.0F1.0-mot-no flange

1.0

Motorized
