0.6X to 3X Microscope Zoom Lenses for LWIR Thermal Camera

Code: 305-001

联系我们

Optical Property

Magnification	0.6X to 3X	Calculated Average Transmission	>85%
Aperture Number	0.15 to 0.48	Operating Temperature Range	-10℃ to +50℃
Operating Wavelength Range	8μm to 12μm	Object Distance	16mm
Coating on Front Surface Exposing to Air	AR	Distortion (Diagonal FOV)	<5%

Mechanical Property

Focusing Mechanism	Manual	Installation Way	Screw thread connection
Weight	/	Flange Focal Distance	13mm
Materials of Lens Housing	Anodized aluminium	Connector	M34x0.75

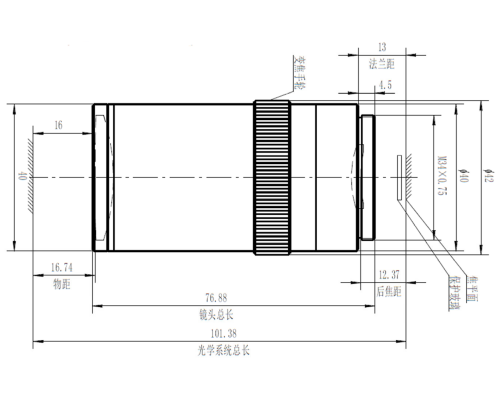

Max. Dimensions (Diameter x Length)	ɸ40x76.88	Sealing Grade	IP54

Observe Area	384x288
25μm	16mmx12mm to 3.2mmx2.4mm

/

L-Zoom-0.6X-3X-microscope

/

Manual

Enquire

7-8 weeks
