15mm to 100mm f/1.4 Zoom Lenses for LWIR Thermal Camera

联系我们

Optical Parameters:

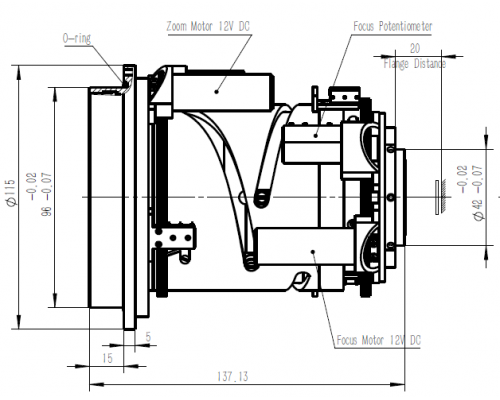

Mechanical Parameters:

Focusing Mechanism	Motorized	Dimensions	Length:137.13 Diameter:Ф115
Back Flange Distance	20mm	Focus Position Feedback	Potentiometer
Focus Drive Voltage	12V DC	Zoom Mechanism	Motorized
Zoom Time	<5 sec	Weight	~1300g
Operation Temperature	-40°~ +60°	Storage Temperature	-50°~ +80°
Through-Zoom Boresight	2-5 pixels (relative to mechanical mounting part)	Through-zoom Parfocality	Keep image focused

1.20°MTF(@29lp/mm)

2.20°Field curvature and distortion

3. Potentiometer Datasheet

4.Boresight Adjustment

Unscrew these 4 screws, and move the mount slightly. Adjust the mount till boresight achieve requirement.

15~100mm

L-Zoom-15/F1.4-100/F1.4continuous

1.4

Motorized

Enquire

7-8 weeks
