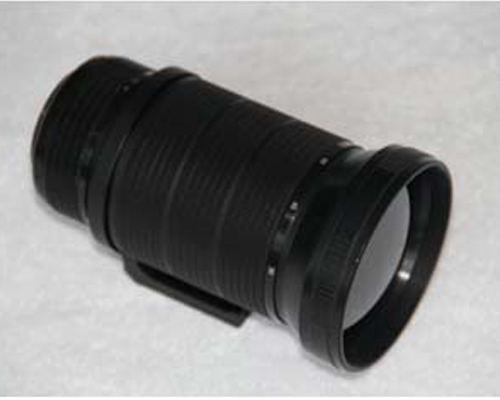

30mm to 90mm f/1.4 Zoom Lenses for LWIR Thermal Camera

Code: 305-014

联系我们

Optical Parameters:

Focal Length Range 30mm to 90mm F Number(#) 1.4
Wavelength Range 8~12 micro Focusing Range ∞~25mm
Horizontal FOV 20.6°/4.2° Coating DLC and AR
Average Transmission >70% Working Temperature -40℃ to +60℃
MTF at Axis >0.5@20lp/mm MTF at maximum FOV >0.3@20lp/mm



Mechanical Parameters:

Mechanical Connection M54x1 Focus Mechanism Motorized
Flange Back Distance 20mm

It is a continuous zoom lens module, with a motorized mechanism. The focal lengths are variable between 30mm and 90mm, with an f-number of 1.4.

30~90mm
L-Zoom-30/F1.4-90/F1.4continuous
1.4
Motorized
Enquire
7-8 weeks
