30mm f/2.8 to 300mm f/4.3 Continuous Zoom SWIR Thermal Camera Lenses-Duplicate

联系我们

30mm f/2.8 to 300mm f/4.3 Continuous Zoom SWIR Thermal Camera Lenses, code: 321-001.

This page is just a duplicate of our product page code 321-001 30mm f/2.8 to 300mm f/4.3 Continuous Zoom SWIR Thermal Camera Lenses, this page only exists because of the structure of our website.

Optical Parameters:

Focal Length	30mm to 300mm	Calculated Average Transmission/
F/#	2.8-4.3	Operating Temperature Range	-30℃ to +55℃
Operating Wavelength Range	0.9μm to 1.7μm	Focus Range	10m/100m-infinity
Coating on Front Surface Exposing to Air	AR	Weight	~2kg

Mechanical Specifications:

Focusing Mechanism	Motorized	Camera Mounting	C-mount
Lens Mount	Front Flange	Back Working Distance (B.W.D)	/
Materials of Lens Housing	aluminium	Connector	Refer to drawing
Max. Dimensions (Diameter x Length)	Refer to drawing	Front Sealing	IP66

Electronics:

Zoom, Focus Mechanism	DC gear motor control	Zoom, Focus Position Feedback	/
Zoom, Focus Driving Voltage	12V DC

FOV-Sensor Size:

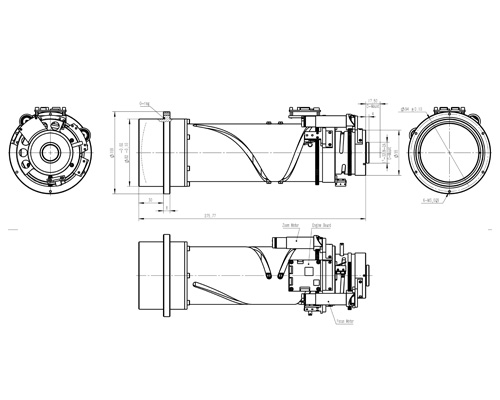

Drawing:

30-300mm

M-Zoom-30/F2.8-300/F4.3

2.8-4.3

Inquire

~2kg
