25mm f/0.85 to 225mm f/1.3 Continuous Zoom Lenses for LWIR Thermal Camera

Code: 305-016

305-016.pdf 联系我们

Optical Property

Focal Length25mm to 225mmCalculated Average Transmission/
F/#0.85-1.3Operating Temperature Range-40℃ to +60℃
Operating Wavelength Range8μm to 12μm
Coating on Front Surface Exposing to Air
DLC



Mechanical Property

Focusing MechanismMotorizedInstallation WayFlange
Housing MaterialAlluminum AloySealing GradeIP67 for Front Flange



Electronic Property

Zoom, Focus MechanismDC gear motor controlZoom,Focus Position FeedbackPotentiometer
Zoom, Focus Driving Voltage12V DC



FOVs and Detectors:

FOVHFOVVFOV
640x480(12μm)17.46° to 1.96°14.01° to 1.56°

Both this module and Hangzhou Shalom EO's 305-010 25mm to 225mm f/1.5 Zoom Lenses for LWIR Thermal Camera are compatible with HD(1280x1024)-12μm infrared detector, which delivers outstanding image details supporting broader FOV, longer distance, and offer excellent spatial resolution with the 12μm pixel size.

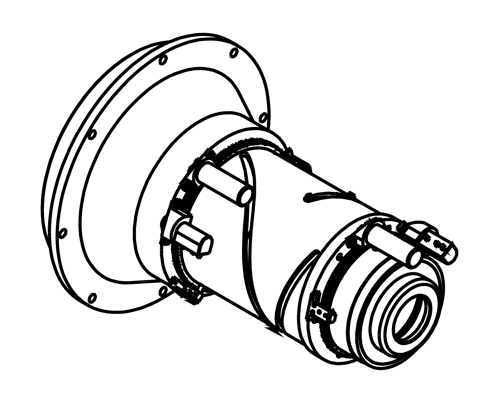

Drawing:

25mm f0.85 to 225mm f1.3 Continuous Zoom Lenses for LWIR Thermal Camera

25~225mm
L-Zoom-25/F0.85-225/F1.3continuous
0.85-1.3
Motorized
Enquire
7-8 Weeks
