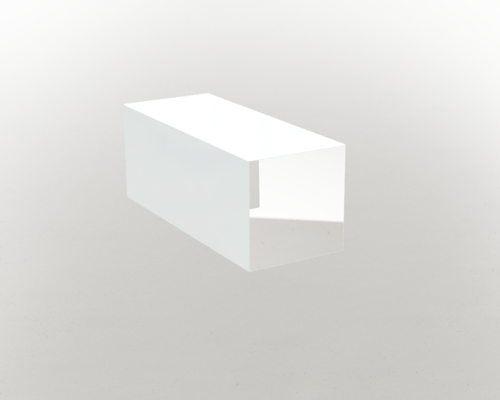

KTP Crystals 4x4x10mm for SHG@1064nm

Code: 20203-002

$115.00

Specifications:

Size	4x4x10mm	Cutting Angle	Theta=90°, Phi=23.5°
Clear Aperture	central 90% of the diameter	Internal Quality	No visible scattering paths or centers when inspected by a 50mW green laser
Flatness	less than λ/10 @ 633nm	Transmitting Wavefront Distortion	less than λ/8 @ 633nm
Chamfer	≤0.2mm at 45°	Chip	≤0.1mm
Surface Quality	better than 10/ 5 to MIL-PRF-13830B	Parallelism	better than 20 arc seconds
Perpendicularity	≤5 arc minute	Angle Tolerance	Δθ≤0.25°, Δφ≤0.25°
Coating	AR/AR@1064nm+532nm	Applications	For SHG@1064nm
Quality Warranty Period	one half year under proper use

KTP Crystals 4x4x10mm for SHG@1064nm, Code: 20203-002

Potassium Titanyl Phosphate (KTiOPO3 or KTP) is an excellent optical crystals suitable for use in many optical systems. It has high nonlinear coefficient and stable physical property. Its most popular application is as a frequency doubler of 1064nm to generate 532nm laser. KTP's properties also make it superior for electro-optic modulation (EO components), optical parametric generation (OPO or OPA components). KTP crystals are widely used in commercial and military lasers including laboratory and medical systems, range-finders, lidar, and industrial systems.

Size up to 20x20x40mm^3 and length upto 60mm

Coating options: Dual Wavelength AR, Broadband AR, High Transmission, High Reflection, Partial Reflection

4x4x10mm

90°

23.5°

AR/AR@1064nm+532nm

SHG of 1064nm, Type2

$115

4 weeks
