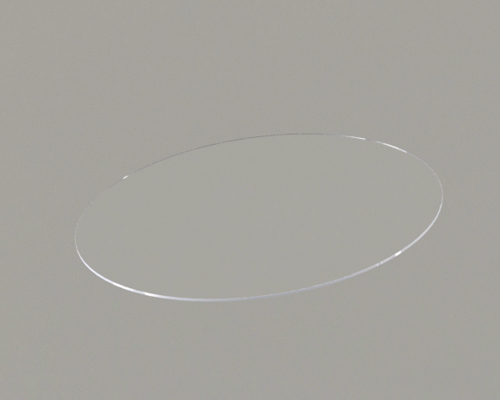

Al2O3 Wafers D100x0.5mm <100> cut DSP

Code: 6505-010

联系我们

Specifications:

Material	Al2O3 crystals or sapphire	Orientation	＜100＞
Orientation Error	C-aixs(0001) to M(1-100)0.2°±0.1°	Size	Diameter 100mm
Thickness	0.5(±0.025)mm(DSP)	Primary Flats	A-Plane±0.3°
Primary Flats Length	30±1mm	Top Surface Roughness	Ra<0.3nm
Back Surface Roughness	Epi-ready, Ra<0.3μm	TTV	<10μm
BOW	-10~0μm	WARP	<15μm
Cleaness and Package	Class 100 clean room cleaning and vacuum nitrogen packaging

Al2O3 crystals or Sapphire is a multi-function crystal materials with excellent properties: good thermos-stability, high thermal conductivity, high hardness, high transmission at infrared wavelength rang and excellent chemical stability. Sapphire is widely used in industrial, defense and security and scientific research fields. sapphire is also an important substrate materials for high temperature superconductivity applications, it can be used for film growth of Y-series, La-series, and it is also used to grow the superconductivity film of MgB2.

Hangzhou Shalom EO provides not only the stocked standard sapphire wafers, but also the custom type wafers upon request.

φ100mm

0.5mm

C-plane

DSP

Inquire

2 weeks
