紫外窄带滤光片

定制产品咨询

Code	Wavelength	Diameter	Aperture	Bandwidth	Unit Price	Delivery
415-001	220nm	6mm	4mm	10nm	Inquire	Inquire
415-002	220nm	8mm	6mm	10nm	Inquire	Inquire
415-003	220nm	10mm	6mm	10nm	Inquire	Inquire
415-004	220nm	10mm	7mm	10nm	Inquire	Inquire
415-005	220nm	12mm	8mm	10nm	Inquire	Inquire
415-006	220nm	15mm	12mm	10nm	Inquire	Inquire
415-007	254nm	6mm	4mm	10nm	Inquire	Inquire
415-008	254nm	8mm	6mm	10nm	Inquire	Inquire
415-009	254nm	10mm	6mm	10nm	Inquire	Inquire
415-010	254nm	10mm	7mm	10nm	Inquire	Inquire
415-011	254nm	12mm	8mm	10nm	Inquire	Inquire
415-012	254nm	15mm	12mm	10nm	Inquire	Inquire
415-013	275nm	6mm	4mm	10nm	Inquire	Inquire
415-014	275nm	8mm	6mm	10nm	Inquire	Inquire
415-015	275nm	10mm	6mm	10nm	Inquire	Inquire
415-016	275nm	10mm	7mm	10nm	Inquire	Inquire
415-017	275nm	12mm	8mm	10nm	Inquire	Inquire
415-018	275nm	15mm	12mm	10nm	Inquire	Inquire
415-019	300nm	6mm	4mm	10nm	Inquire	Inquire
415-020	300nm	8mm	6mm	10nm	Inquire	Inquire
415-021	300nm	10mm	6mm	10nm	Inquire	Inquire
415-022	300nm	10mm	7mm	10nm	Inquire	Inquire
415-023	300nm	12mm	8mm	10nm	Inquire	Inquire
415-024	300nm	15mm	12mm	10nm	Inquire	Inquire
411-001	340nm	6mm	4mm	10nm	Inquire	Inquire
411-002	340nm	8mm	6mm	10nm	Inquire	Inquire
411-003	340nm	10mm	6mm	10nm	Inquire	Inquire
411-004	340nm	10mm	7mm	10nm	Inquire	Inquire
411-005	340nm	12mm	8mm	10nm	Inquire	Inquire
411-006	340nm	15mm	12mm	10nm	Inquire	Inquire
411-007	380nm	6mm	4mm	10nm	Inquire	Inquire
411-008	380nm	8mm	6mm	10nm	Inquire	Inquire
411-009	380nm	10mm	6mm	10nm	Inquire	Inquire
411-010	380nm	10mm	7mm	10nm	Inquire	Inquire
411-011	380nm	12mm	8mm	10nm	Inquire	Inquire
411-012	380nm	15mm	12mm	10nm	Inquire	Inquire

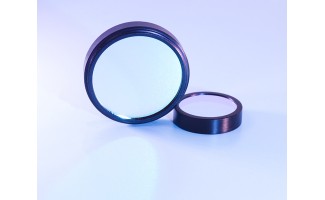

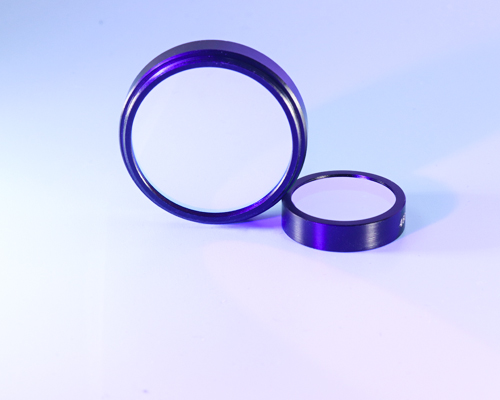

Shalom EO 提供配备硬质镀膜的紫外窄带滤光片。我们的滤光片旨在提供无与伦比的光学性能，其光密度高达 OD4，可阻挡 200nm 至 1200nm 的波长，确保在各种光学应用中提供卓越的清晰度和精度。本页介绍的窄带滤光片专为紫外光谱范围内的操作而设计。

我们备有数十种不同规格的紫外窄带滤光片模块，如需咨询或定制解决方案，请联系我们。

常见规格：

光密度 (OD)	≧4.0	阻断波长范围	200 ~1200nm
表面质量	80/50 S/D
