100mm f/4.0 Manual Focus MWIR Thermal Camera Lenses for Cooled Detetor

Code: 311-011

联系我们

Optical Parameters:

Focal Length (EFL)	100mm	f Number (f#)	4.0
Wavelength Range	3~5 micro	Detector	640x512-15micro
FOV(HxV)	5.5°x4.4°	Coating on Lens Front	AR
Average Transmittance	>95%(measured from sample)	Working Temperature Range	-40℃ ~ +60℃ (Need not to refocus)
Maximum Diameter	70mm	Length of Lens	54.44mm
Back Flange Length	35mm	Distortion	<1.5%
Mechanical Connector	M54x1-6g	Focus Mechanism	Manual

100mm f/4.0 manual focus lens module is compliant with cooled FPA detectors ( InSb Focal Plane Arrays ) of 640x512-15μm, operating at the MWIR wavelength range 3.5~5.0μm. The lens module is optimized for high transmission, superior MTF and low distortion. The sealing grade of the housing is IP54, with a total weight of less than 700 grams. Modifications of the parameters could be arranged upon your request.

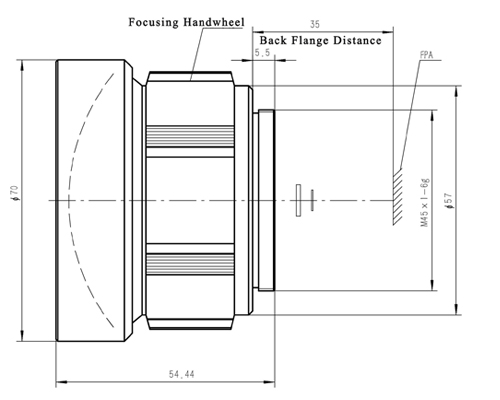

Drawing:

Testing Results and Curves:

100mm

M100F4.0-man

4.0

Manual

Enquire

2 month
