200mm f/2.0 Manual Focus MWIR Thermal Camera Lenses for Cooled Detetor

Code: 311-006

联系我们

Optical Parameters:

Focal Length(EFL)	200mm	f Number (f#)	2.0
Wavelength Range	3~3.5 micro	Detector	640x512-15micro, cooled
FOV	2.75°x2.2°(3.52°)	Coating	DLC+AR
Average Transmittance	>81% for DLC external coating >86% for AR external coating	Working Temperature Range	-40℃~60℃
Minimum Working Distance	7mm	Distortion	Maximum D-FOV distortion <2%
BFL	40.63mm

Mechanical Parameters:

Dimensions	Length:196.78mm Diameter:117mm	Focus Mechanism	Internal Manual Focusing
Sealing	IP54	Mount	M80x1-6g Back Flange Distance: 52.245
Housing Material	Aluminum, Black anodized	Operation Temperature	-40℃~ +60℃
Storage Temperature	-50℃~ +70℃	Weight	<1200gram

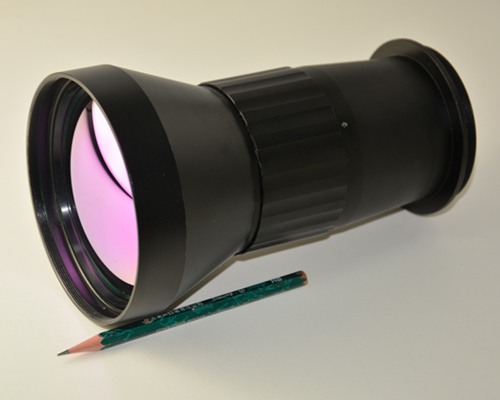

200mm f/2.0 manual focus lens module is compliant with cooled FPA detectors ( InSb Focal Plane Arrays ) of 640x512-15μm, operating at the MWIR wavelength range 3.5~5.0μm. The lens module is optimized for high transmission, superior MTF and low distortion. The sealing grade of the housing is IP54, with a total weight of less than 1200 grams. Modifications of the parameters could be arranged upon your request.

Drawing:

Testing Results and Curves:

1. MTF@33lp/mm

2. Field Curvature and Distortion

3. Relative Illumination

4. Vignetting

200mm

M200F2.0-man

2.0

Manual

Enquire

2 month
