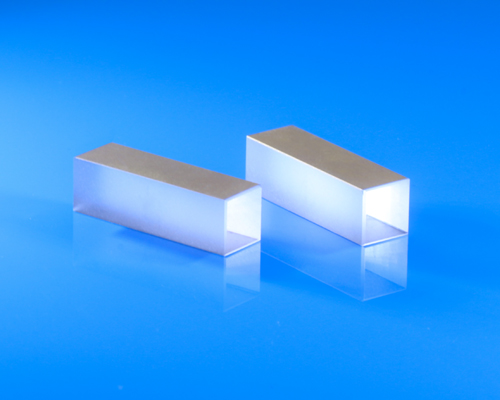

LiNbO3 Z-Cut, 10x10x20mm, Rectangular, Au electroded for EO applications

Code: 2043-003

$365.00

Specifications:

Crystal Materials	LiNbO3 crystals	Size	10x10x20mm (Rectangular)
Size Tolerance	+/-0.1mm	Length Tolerance	+/-0.2mm
Surface Quality	20/10 S/D	Parallelism	<20 arc seconds
Flatness	< Lambda/10 @633nm	Chamfer	0.1-0.3mmx45°
Chips	<0.15mm	Side Surface	Fine ground
Orientation Tolerance	< 10 arc minutes	Wavefront Distortion	<Lambda/4@633nm
Extinction Ratio	>200:1	Coating	AR/AR@1064nm or customized
Damaging Threshold	>100mW/cm^2@1064nm 10nS 10Hz pulse	Electrode on Side Surface	Chrome gold electrode (Cr+Au)

Note: crystals with other special specificaton is available upon request

LiNbO3 crystals have become one of the most commonly used material for Q-switches and phase modulators for its high EO coefficients, with an electric field applied transverse to the direction of light propagation, LiNBO3 cells can be configured to operate at a lower voltage than comparable KD*P cells. LiNbO3 can also be a good choice for infrared wavelengths as long as 3.0µm. Hangzhou Shalom EO offers the polished, and AR coating and Au-Cr electroded LiNbO3 crystals used in pockels cells.

LiNbO3 crystals with bruster angle:

LiNbO3

10x10x20mm

Z-cut

AR/AR@1064nm Cr+Au electrode

$365

2-3 Days

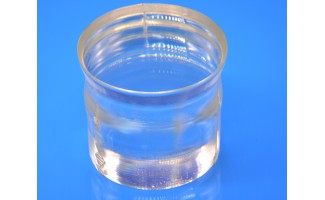

LiNbO3晶体

透射波长范围宽：350-5200nm
损伤阈值高，机械强度高
非常适合制造隔离器、环行器、光束位移器和偏振光学元件
两种精度等级可选：标准级/高精度级
提供晶锭、毛坯和抛光基板

...

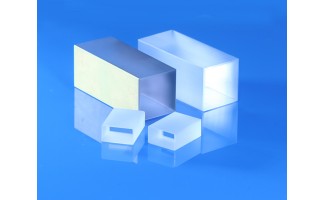

用于光电应用的MgO:LiNbO3晶体
