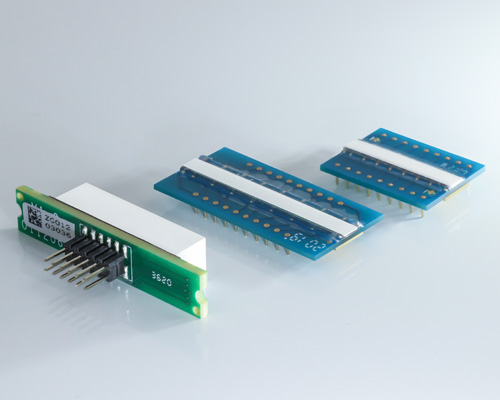

1.575mm pitch x 16 element Si Photodiode Coupled with GOS, CsI

Code: SA-PD16A-16-1.575

联系我们

Specifications:

Wide light spectrum ranges from 350~1100nm with a peak response at ~950nm.
Element size: 1.4(W) x 2.5(H) mm / one element
Element pitch: 1.575mm (x 16 pixels)
Mounted on two sizes of board: 25.4 x 20.0 mm (wide board for low energy), and 25.4 x 10.2 mm (narrow board for high energy)
Supports dual-energy imaging (When used in an upper and lower two-layer combination)
Coupled with a GOS screen for low energy, and a CsI array for high energy
Detectable energy range: 30 keV to 200 keV.
Arranging with two or more modules in a row for long-size line detector

Silicon Photodiode Arrays:

Element Pitch	1.575mm
Element Effective Width	1.4mm
Element Effective Length	2.5mm
Number of elements	16
Spectrum Response Range	350-1100nm
Peak Sensitivity Wavelength	950nm
Photosensitivity@550nm	Typ. 0.4, Min. 0.36A/W
Dark Current@-10mV	Typ. 5, Max. 20pA
Terminal Capacitance@0V, f=10kHz	Typ. 41, Max. 50pF

GOS Scintillator:

GOS Thickness	0.35mm
GOS Length	25.4mm
GOS Width	3.5mm

CsI Scintillator:

CsI Thickness	5.0mm
CsI Length	25.4mm
CsI Width	3.5mm
CsI Element Pitch	1.575mm
CsI Element Width	1.4mm
CsI Element Height	3.1mm
CsI Element Thickness	4.0mm

Performance of Scintillators:

Material	GOS ceramic (Gd2O2S:Pr)	CsI (Tl)(Cesium Iodide)
Peak Emission Wavelength	512nm	550nm
Decay Time	3000ns	1000ns
Refractive Index	2.2	1.79
Afterglow	0.01% @20ms	<1% @20ms
Density	7.34 g/cm^3	4.51 g/cm^3
Non-uniformity of Sensitivity	+/- 15%	+/- 15%

1.575mm pitch x 16 element Si Pohitodiode, Code: SA-PD16A-16-1.575.

Hangzhou Shalom EO offers a series of silicon photodiodes. our standard photodiodes feature 16 elements and could be coupled with GOS, and CsI. 3 standard modules are optional, including 2 modules of 1.575 element pitch and 1 module of 2.5 element pitch. The standard modules each consist of two Si photodiodes, one is coupled with CsI(Tl), which generates sufficient light output for high-energy detection, and one is coupled with a GOS ceramic scintillation detector, which is assigned for low-energy detection. Two Si PDs in combination complete the detection of energy levels from low to high. Besides the standard versions, we also provide silicon photodiodes coupled with various scintillation materials such as CdWO4, etc.

Shalom EO’s scintillation detection arrays feature ultra-low dark current, high response speed, and low terminal capacitance, and the photosensitivity spectrum stretches from 350-1100nm, peaking at approx. 950nm. Additionally, this module is compact and lightweight, allowing easy integration, and requires a low maximum reverse voltage.

Drawings:
